12Lb-27-60
- Without drive circuit, control DC motor and feedback with a high degree of freedom. Actuators for advanced users
- Coreless Moter (12VDC)
- 60mm Stroke
- Rated Load / Max Speed (No Load) : 27N / 28mm/s
- Max Allowable Load : 54N (at under 20% Duty Rate)
- Stall Force at Current (1.6A / 800mA / 100mA) : 160N / 96N / 27N
- Gear Ratio 10:1
- Mechanical Self Lock (Z Axis Use) : Yes
Digital Archive
Main Features
Feedback Lineup Main Features (12Lb Series)
1 Built-in potentimeter(absolute position sensor), DC motor, gear box and leadscrew
2 Direct motor and potentiometer control by advanced users
3 Heavy Duty reliable coreless DC motor applied
4 Compact size for space constraints
5 Various mounting solutions
6 Detachable and 90° rotatable hinge design (Patented)
7 Rated load option (10~100N)
8 Speed option (7.7~100mm/s at no load)
9 30, 45, 60, 100mm potentiometer position range
Applications
1 Medical device and Lab equipment
2 Kiosk machines
3 Robotics
4 Automation (Factory / Home / Agriculture etc)
5 Production and inspection jigs
6 UAV (Fixed wing / Helicopter / Multicopter etc)
7 DYI, Education, Hobby, etc
Common Specifications
Feedback Lineup (12Lb Series) Common Specifications
| Position Sensor | Absolute Position 10kΩ linear Potentiometer Unidirectional | |||
|---|---|---|---|---|
| Mechanical Backlash | 0.03mm (30μm) | |||
| Rod Type | Metal Alloy Rod | |||
| Motor | Motor Type | 12DC Coreless Motor / 33.6W (Stall) | ||
| Input Voltage Range | DC6V -13.0V | |||
| Motor Speed | 26500±10%rpm (At Rated Volutage & No Load) / 23500±10%rpm (At Rated Volutage & Rated Load) | |||
| Stall Torque | ≥95g.cm | |||
| Motor Current | At No Load | At Rated Load | Max(Stall) | |
| ≤ 50mA | ≤350mA | 2.5A | ||
| Recommended Duty Cycle | At Rated Load | At Max Applicable Load | ||
| Max 50% | Max 20% | |||
| Audible Noise | Approx. 50db at 1m | |||
| Current Accuracy Position Sensor |
IP-54 (Dust & Water Tight) | |||
| Size / Weight (Excluding rod-end & hinge) |
57.4(L)x29.9(W)x15(H)mm / 48g | |||
| Operating Temperature | -10℃ ~ 60℃ | |||
| Cable | 0.08×60 (AWG 22), 30cm (2 from Motor, 3 from Potentiometer) | |||
Dimension

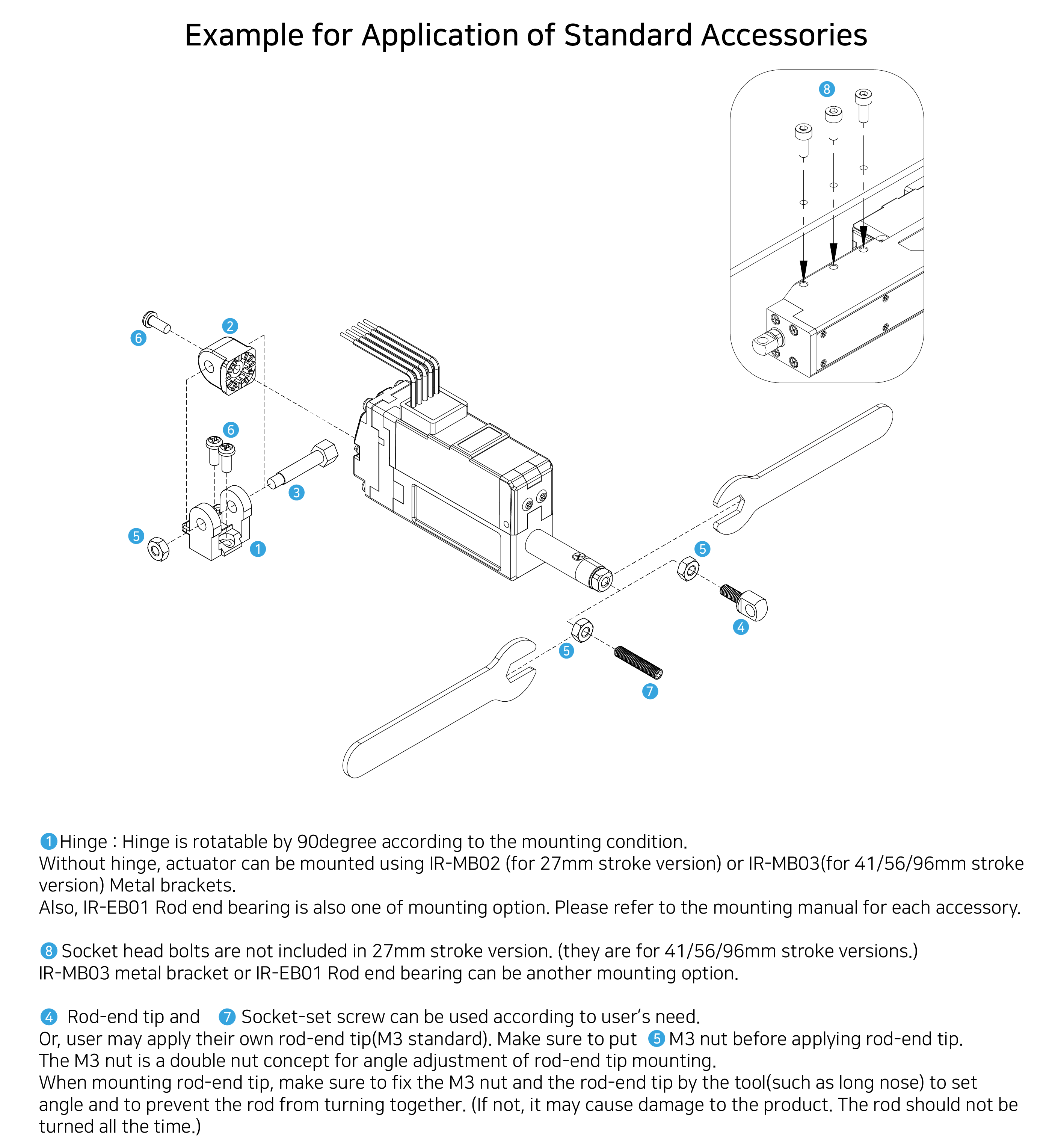

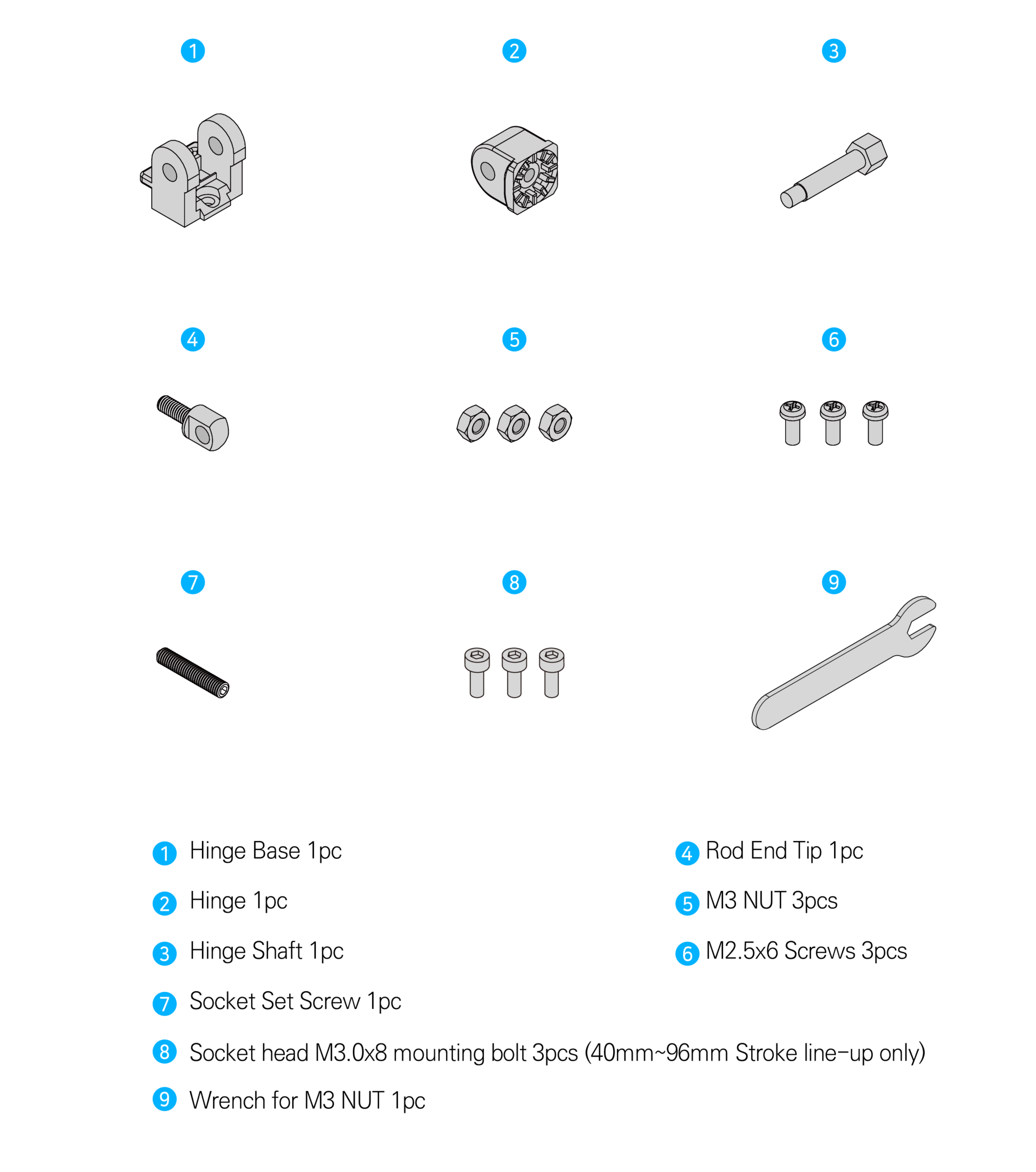

Standard Accessories
