mightyZAP, the micro linear servo actuating solution
for the era of the 4th industrial revolution
12D7-12S-22
- Simple linear operation via built-in limit switches without drive circuit & potentiometer.
- Cored Moter (7.4VDC)
- 22mm Stroke
- Rated Load / Max Speed (No Load) : 12N / 10mm/s
- Max Allowable Load : 24N (at under 20% Duty Rate)
- Gear Ratio 10:1
- Mechanical Self Lock (Z Axis Use) : Yes
- Built-in Limit Switches
Main Features
Main Features (12D Series)
- 500μm Unidirectional repeatability
- Cored DC motor applied
- Life-cycle Reference Data is on our website (Under 50% duty cycle recommended)
- Compact size for space constraints
- Various mounting solutions
- Detachable and 90° rotatable hinge design (Patented)
- Input voltage option (7.4V, 12V)
- Rated Load 12N
- Max speed (10mm/s at no load)
- 22mm Stroke
- Vertical (Z axis) use is possible thanks to mechanical Self-lock
Applications
- Applications
Medical device and Lab equipment - Kiosk machines
- Robotics
- Automation (Factory / Home / Agriculture etc)
- Production and inspection jigs
- UAV (Fixed wing / Helicopter / Multicopter etc)
- DYI, Education, Hobby, etc
Common Specifications
| Stroke | 22mm | |||
|---|---|---|---|---|
| Repeatability (Unidirectional) | 500μm(0.5mm) | |||
| Mechanical Backlash | 0.03mm(30μm) | |||
| Rod Type | EngineeringPlastic Rod | |||
| Motor Type | CoredMotor | |||
| Motor Watt | 26W | |||
| Recommended Duty Cycle | At Rated Load | At Max Applicable Load | ||
| Max 50% | Max 20% | |||
| Input Voltage Range | 7.4V | 12V | ||
| 5~8.9V | 7 ~13V | |||
| Current Consumption | Input Voltage | Idle | Rated | Max(Stall) |
| 7.4V | 50mA | 250mA | 360mA | |
| 12V | 50mA | 140mA | 250mA | |
| Audible Noise | Approx. 50db at 1m | |||
| Ingress Protection | IP-54(Dust & Water Tight) | |||
| Size / Weight (Excluding rod-end & hinge) | 57.4(L)x29.9(W)x15(H)mm/ 48g | |||
| Operating Temperature | -10℃~ 60℃ | |||
| Wire Harness | AWG22 | |||
Dimension

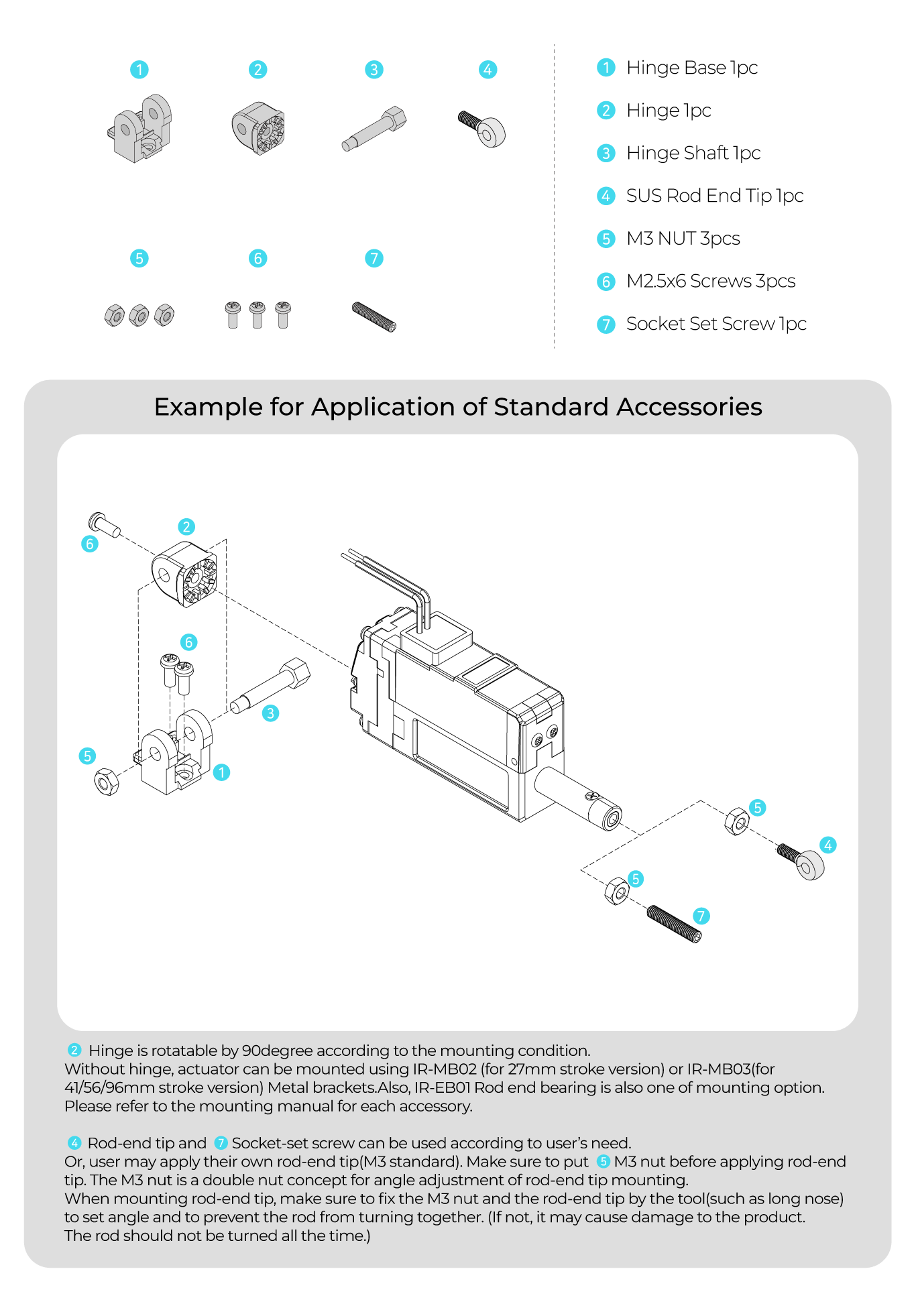

Standard Accessories
