mightyZAP, the micro linear servo actuating solution
for the era of the 4th industrial revolution
IR-MB05
- Dedicated only for 17Lf (27mm stroke)
- For Lateral Mounting
- Not applicable to models other than 17Lf 27mm stroke series
- For assembly and installation instructions, see below.
Main Features
- The IR-MB05 metal bracket dedicated to the 17Lf 27mm stroke series allows the servo actuator to be mounted horizontally without any directional restrictions.
- For Lateral Mounting
- Not applicable to models other than 17Lf 27mm stroke series
How to Use / PIN Map
Make sure to refer to the assembling instruction on-line to prevent damage.
The cutting edges may be sharp. Wear gloves to avoid injury.

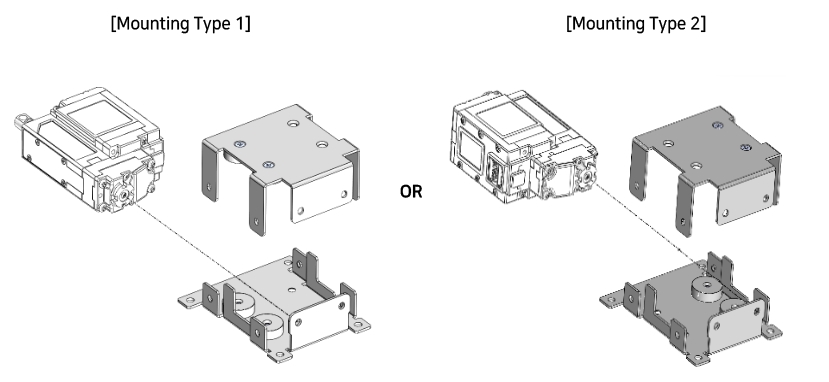

Step. 1 Choose preferred mounting direction, then follow the instruction
Step. 2
Step. 3
When fastening the Screw M2.6xL6 indicated by the red circle in the image above, be sure to use the screw screw included in the bracket.
(Pay attention to the length of screw) Otherwise, it may result in damage to the product.
