IR-MB07
- Dedicated for 17Lf (37~87mm stroke) version
- Full Set for A, B, C Type Brackets
- For Horizontal Mounting and Vertical Mounting
- Not compatible with 17Lf 27mm stroke version
Main Features
The IR-MB07 is a metal bracket exclusively designed for the 17Lf series 37mm to 87mm strokes actuators.
Mount the servo actuator without any directional restrictions of the actuator.
- For Horizontal Mounting and Vertical Mounting
- Not compatible with 17Lf 27mm stroke version
How to Use / PIN Map
The cross-section of the metal bracket may be sharp when assembling. Be sure to were protective gloves.
How to Assemble

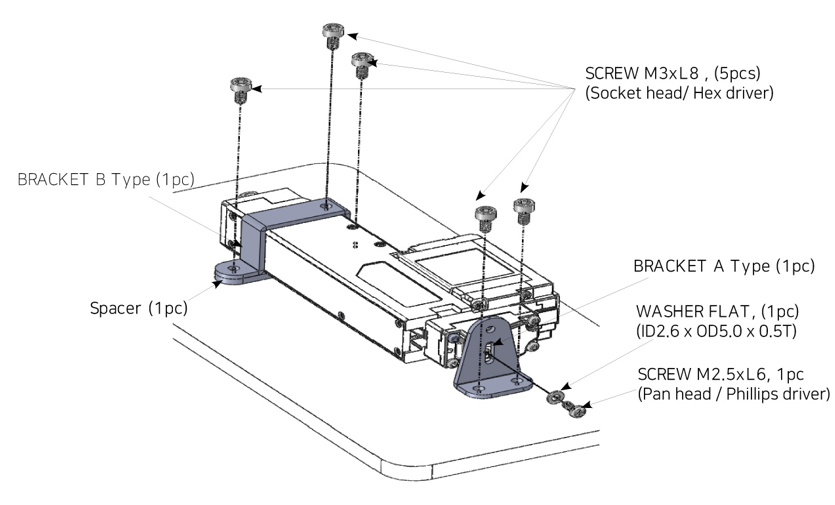

Horizontal Mounting
– Install the Bracket B Type by adding a spacer
– When installing the Bracket A Type, be sure to use the included washer.

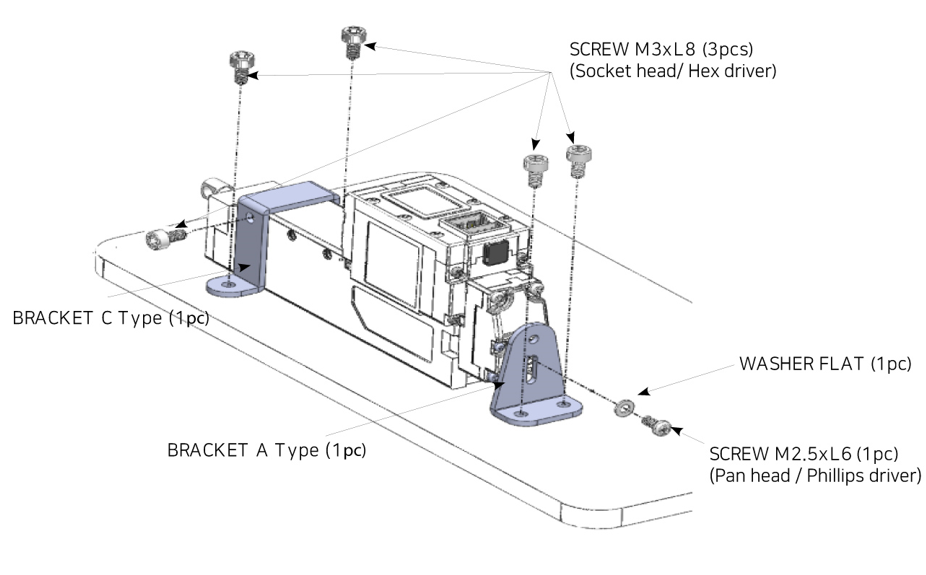

Vertical Mounting
– Install the Bracket C Type without a spacer.
– When installing the Bracket A Type, be sure to use the included washer.
