Limit Switch
12D-12S-22
- Simple linear operation via built-in limit switches without drive circuit & potentiometer.
- Cored Moter (12VDC)
- 22mm Stroke
- Rated Load / Max Speed (No Load) : 12N / 10mm/s
- Max Allowable Load : 24N (at under 20% Duty Rate)
- Gear Ratio 10:1
- Mechanical Self Lock (Z Axis Use) : Yes
- Built-in Limit Switches
Digital Archive
Main Features
Main Features (12D Series)
1 500μm Unidirectional repeatability
2 Cored DC motor applied
3 Life-cycle Reference Data is on our website (Under 50% duty cycle recommended)
4 Compact size for space constraints

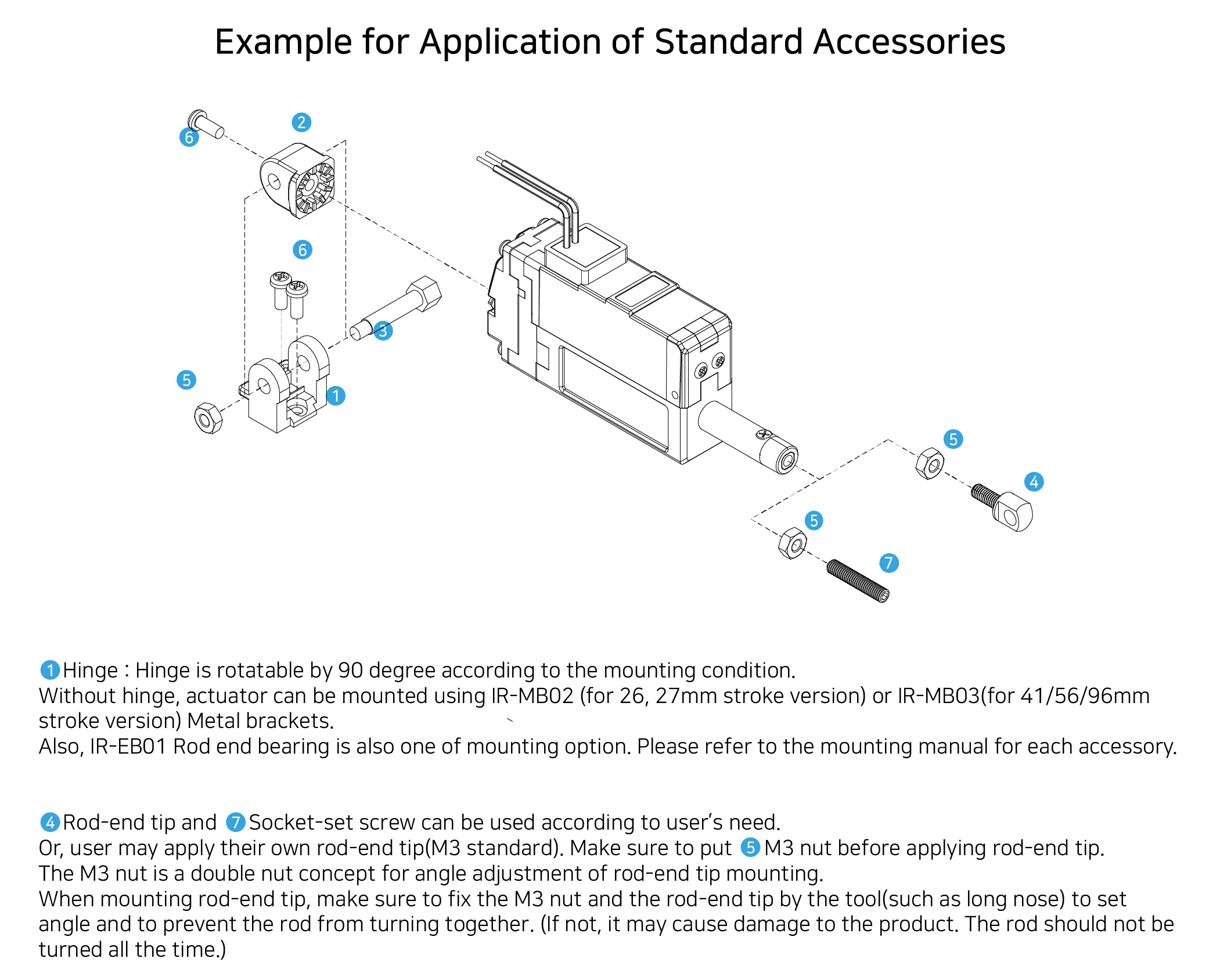

5 Various mounting solutions
6 Detachable and 90° rotatable hinge design (Patented)
7 Input voltage option (7.4V, 12V)
8 Rated Load 12N
9 Max speed (10mm/s at no load)
10 22mm Stroke
11 Vertical (Z axis) use is possible thanks to mechanical Self-lock
Applications
1 Applications
Medical device and Lab equipment
2 Kiosk machines
3 Robotics
4 Automation (Factory / Home / Agriculture etc)
5 Production and inspection jigs
6 UAV (Fixed wing / Helicopter / Multicopter etc)
7 DYI, Education, Hobby, etc
Common Specifications
Limit Switch Lineup (12D Series) Common Specifications
| Stroke | 22mm | |||
|---|---|---|---|---|
| Repeatability (Unidirectional) | 500μm(0.5mm) | |||
| Mechanical Backlash | 0.03mm(30μm) | |||
| Rod Type | EngineeringPlastic Rod | |||
| Motor Type | CoredMotor | |||
| Motor Watt | 26W | |||
| Recommended Duty Cycle | At Rated Load | At Max Applicable Load | ||
| Max 50% | Max 20% | |||
| Input Voltage Range | 7.4V | 12V | ||
| 5~8.9V | 7 ~13V | |||
| Current Consumption | Input Voltage | Idle | Rated | Max(Stall) |
| 7.4V | 50mA | 250mA | 360mA | |
| 12V | 50mA | 140mA | 250mA | |
| Audible Noise | Approx. 50db at 1m | |||
| Ingress Protection | IP-54(Dust & Water Tight) | |||
| Size / Weight (Excluding rod-end & hinge) | 57.4(L)x29.9(W)x15(H)mm/ 48g | |||
| Operating Temperature | -10℃~ 60℃ | |||
| Wire Harness | AWG22 | |||
Dimension
