12L-35S-22
- Simple linear operation via built-in limit switches without drive circuit & potentiometer.
- Coreless Moter (12VDC)
- 22mm Stroke
- Rated Load / Max Speed (No Load) : 35N / 28mm/s
- Max Allowable Load : 70N (at under 20% Duty Rate)
- Gear Ratio 10:1
- Mechanical Self Lock (Z Axis Use) : Yes
- Built-in Limit Switches
Digital Archive
Main Features
Limit Switch Lineup Main Features (12L Series)
1 500μm Unidirectional repeatability
2 Heavy Duty Reliable coreless DC motor
3 Life-cycle Reference Data is on our website (Under 50% duty cycle recommended)
4 Compact size for space constraints

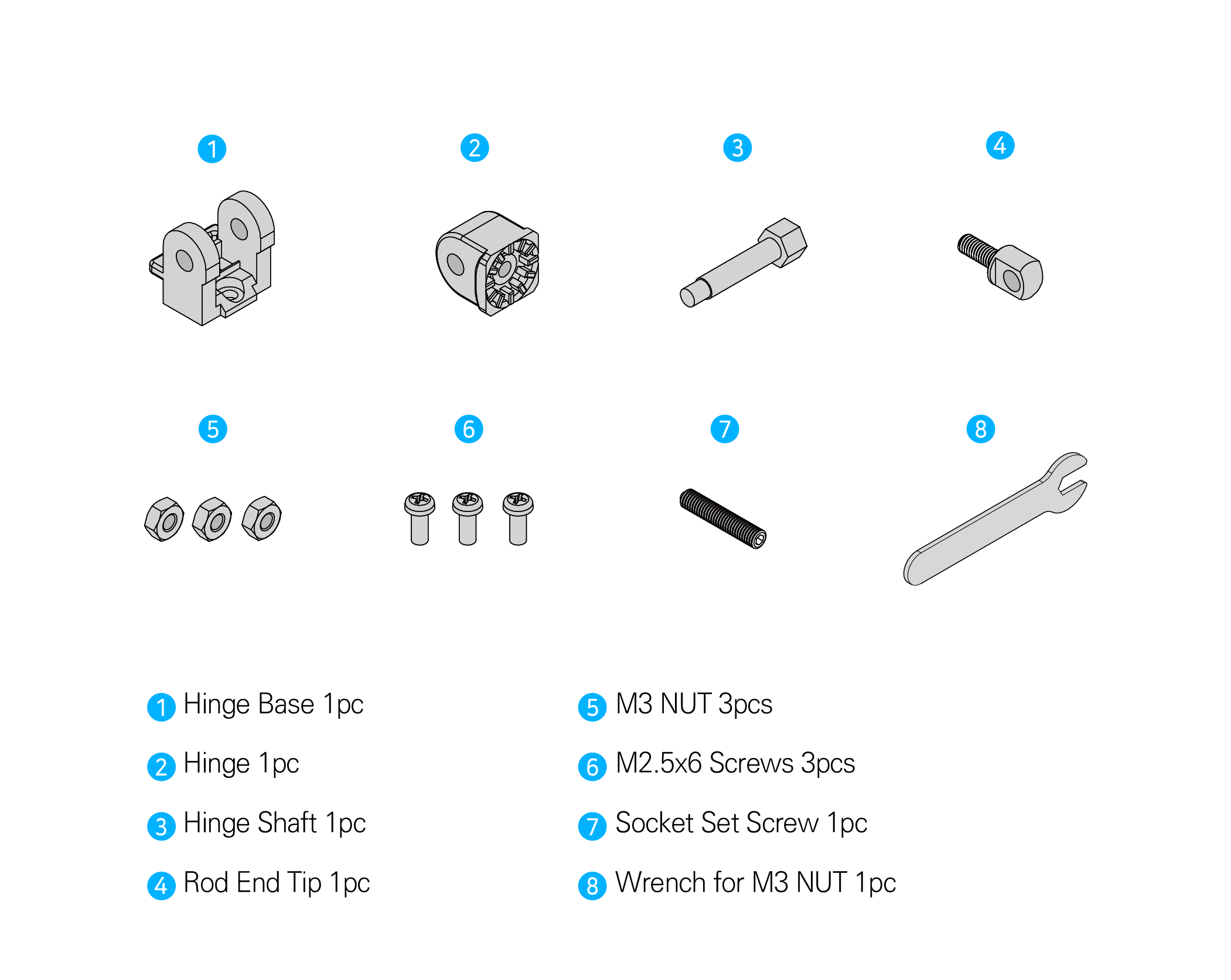

5 Various mounting solutions

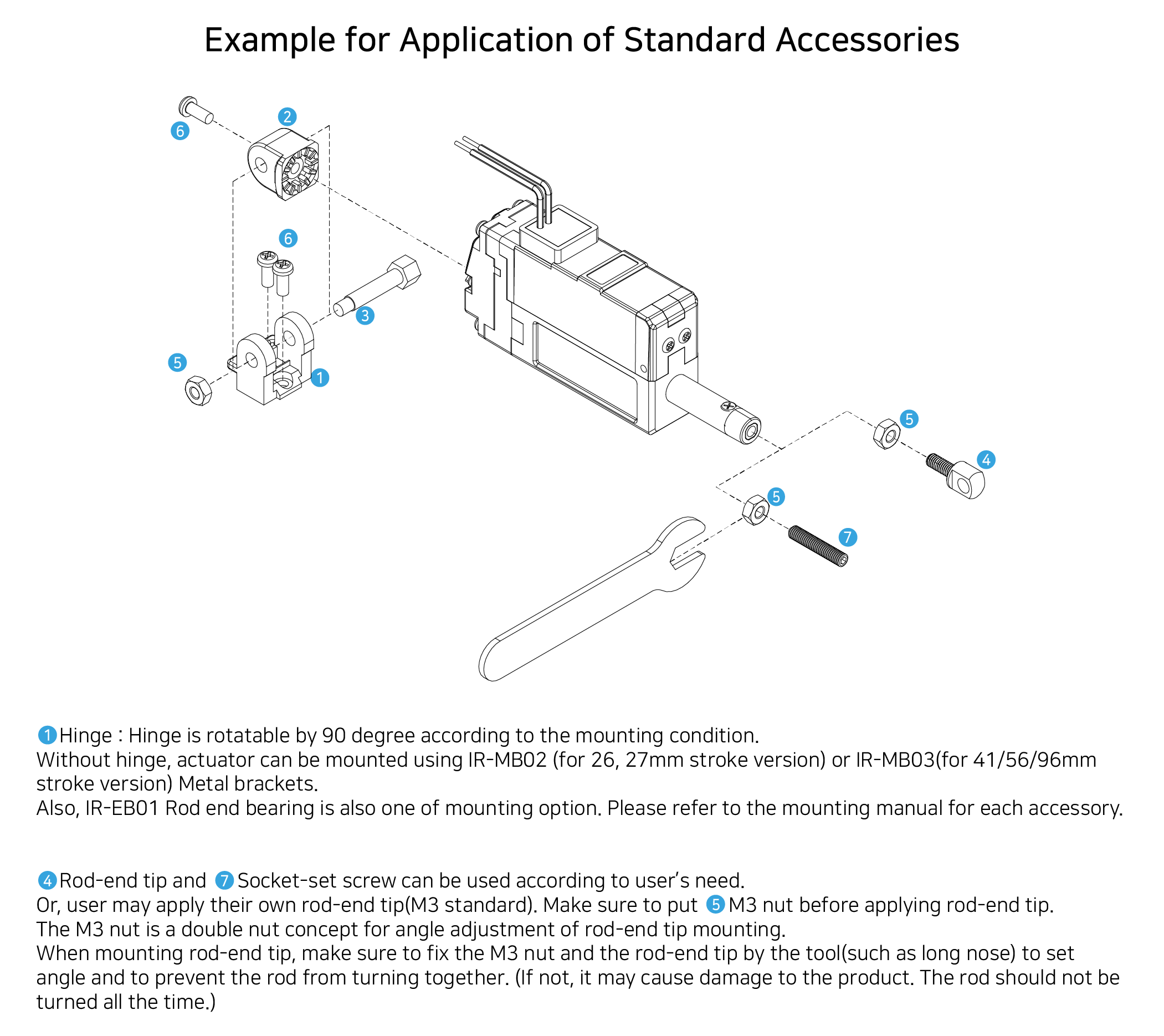

6 Detachable and 90° rotatable hinge design (Patented)
7 Various Rated Load options (35 to 100N)
8 Various Speed options (7.7 to 28mm/s at No load condition)
9 22mm Stroke (Longer stroke version to be released soon)
10 Vertical (Z axis) use is possible thanks to mechanical Self-lock
Applications
1 Medical device and Lab equipment
2 Kiosk machines
3 Robotics
4 Automation (Factory / Home / Agriculture etc)
5 Production and inspection jigs
6 UAV (Fixed wing / Helicopter / Multicopter etc)
7 DYI, Education, Hobby, etc
Common Specifications
| Stroke | 22mm | ||
|---|---|---|---|
| Repeatability (Unidirectional) | 500μm (0.5mm) | ||
| Mechanical Backlash | 0.03mm (30μm) | ||
| Rod Type | Metal Alloy Rod | ||
| Motor Type | Coreless Motor | ||
| Motor Watt | 26W | ||
| Recommended Duty Cycle | At Rated Load | At Max Applicable Load | |
| Max 50% | Max 20% | ||
| Input Voltage Range | 7 ~ 13V | ||
| Current Consumption | Idle | Rated | Max(Stall) |
| 50mA | 380mA | 1.5A | |
| Audible Noise | Approx. 50db at 1m | ||
| Ingress Protection | IP-54 (Dust & Water Tight) | ||
| Size / Weight (Excluding rod-end & hinge) | 57.4(L)x29.9(W)x15(H)mm / 48g | ||
| Operating Temperature | -10℃ ~ 60℃ | ||
| Wire Harness | 0.08×60 (AWG 22), 30cm | ||
Dimension
