mightyZAP, the micro linear servo actuating solution for the era of the 4th industrial revolution
53mm53mm
12Lf Servo Series

12Lf-78F-53

  • The 2nd Generation of mightyZAP actuators supporting position, current and speed control
  • Coreless Moter (12VDC)
  • 53mm Stroke
  • Rated Load / Max Speed (No Load) : 78N / 7.7mm/s
  • Max Allowable Load : 156N (at under 20% Duty Rate)
  • Stall Force at Current (1.6A / 800mA / 100mA) : 420N / 252N / 33.6N
  • Data Communication : RS-485 (Built-in Drive)
  • Protocol : IR Robot open Protocol / MODBUS RTU Protocol
  • Gear Ratio 50:1
  • Mechanical Self Lock (Z Axis Use) : Yes

Digital Archive

Main Features

FORCE Control

  • Stall Force and current control based on current feedback
  • Current feedback allows detection of objects and obstacles
  • Possible to maintain constant force for a certain time (Applicable to Gripper, etc.)
  • Precision position & Dynamic speed control
  • 30~50μm Unidirectional repeatability & Position feedback (Varied by each stroke version. See spec chart.)
  • Absolute position sensing via Potentiometer (No Calibration needed)
  • 32Bit Micro controller, High resolution (4096) A/D converter
  • 1024 steps dynamic speed control (Fastest speed is default.)



Durability & Safety

  • Heavy Duty Reliable 12V coreless DC motor with 7 ~ 13V input voltage range
  • Metal alloy rod
  • Engineering plastic case (27mm stroke version)
  • Aluminum stroke case & engineering plastic motor case (40mm / 53mm / 90mm)
  • Current control allowing longer life cycle & safer control
  • Life-cycle Reference Data is on our website (Under 50% duty cycle recommended)
  • Vertical (Z axis) use is possible due to mechanical Self-lock (Certain models are not applicable, see the model chart)
  • Smart overload protection by calculation of cumulative current
  • LED indicator shows voltage/overload error status and also shows simple circuit damage diagnosis



Easiness

  • Compact size for space constraints
  • Hassle-free, Built-in drive circuitor
  • Daisy chain serial connection between servos
  • Various mounting solutions
  • Detachable and 90° rotatable hinge design (Patented)
  • Various APIs / Libraries / Examples of programming languages (C# / C++ / Python / Java / LabView/ Raspberry Pi /
    Arduino etc.)
  • Dedicated PC Software (Parameter setting & simple motion testing) and PC USB Interface (IR-USB02) available
    (Optional)
  • LED Error indicator & LED self-diagnosis function
  • Paired with various controller types (PC / PLC / Arduino / Rasberry-Pi / RC Controller / Dedicated embedded
    board etc.)



Variety and Line-Up

  • Various Stroke options (27mm*, 40mm , 53mm, 90mm)
  • Various Rated Load options (10 to 100N)
  • Various Speed options (7.7 to 110mm/s at No load condition)
  • Two types of data communication options (TTL or RS-485)
  • IR open protocol and Modbus RTU Protocol available (refer to the dedicated user manuals)
  • TTL(Data comm.) or PWM(Pulse signal) is automatically recognized in TTL/PWM version
  • Customization is actively available
  • * 27mm stroke can be extended to 30mm using IR-USB01

Applications

  • Medical device and Lab equipment
  • Kiosk machines
  • Robotics
  • Automation (Factory / Home / Agriculture etc)
  • Production and inspection jigs
  • UAV (Fixed wing / Helicopter / Multicopter etc)
  • DYI, Education, Hobby, etc

Common Specifications

Force Control Lineup (12Lf Series) Common Specifications

Repeatability Stroke Unidirectional
27mm / 40mm 30μm(0.03mm)
53mm 40μm(0.04mm)
90mm 50μm(0.05mm)
Mechanical Backlash 0.03mm(30μm)
Rod Type MetalAlloy Rod
Motor Type CorelessMotor
Rated Voltage 12V
Motor Watt 26W
Recommended Duty Cycle At Rated Load At Max Applicable Load
Max 50% Max 20%
Current Accuracy ±15%at Over 50mA
Position Sensor 10KΩlinear Potentiometer
Input Voltage Range 7 ~13V
Current Consumption Idle Rated Stall
Default MAX
20mA 380mA 800mA 1.6A
Audible Noise Approx. 50db at 1m
LED Indication Two Errors Indications (Input voltage, Overload)
Pulse Signal / Pulse Range PWM (PT version, R/C Hobby Signal)
900μs(Retracted)-1500μs(Center)-2100μs (Extended)
Data Communication / Protocol RS-485 or TTL(PT version) / IR Robot open protocol
Ingress Protection IP-54(Dust & Water Tight)
Size / Weight
(Excluding rod-end & hinge)
27mm 57.5(L)x29.9(W)x15(H)mm/ 49~52g
40mm 86.9(L)x36(W)x18(H)mm/ 96~99g
53mm 111.5(L)x36(W)x18(H)mm/ 124~127g
90mm 151.5(L)x36(W)x18(H)mm/ Approx. 177g
Operating Temperature -10℃~ 60℃
Wire Harness TTL(PTversion) : Molex to Molex Type (Molex 50-37-5033, 3pins) / 200mmlength, 0.08×60(22AWG)
or RS485(F version) : Molex to Molex Type(Molex 0510650400, 4pins) / 200mm length, 0.08×60(22AWG)

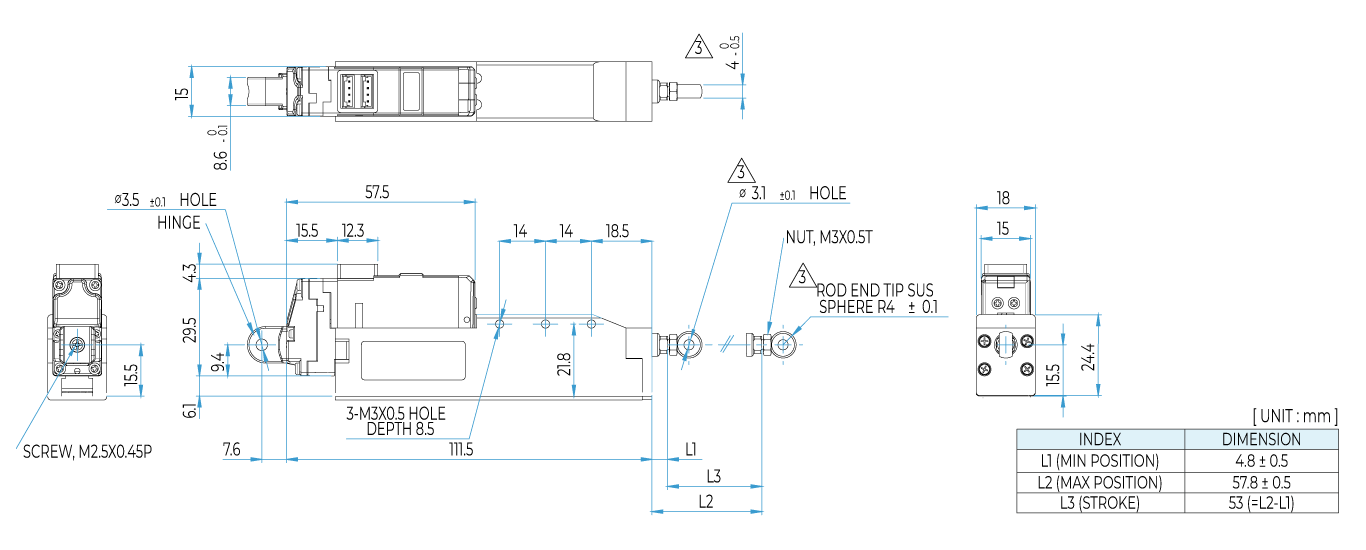

Dimension

Standard Accessories
